Antimicrobial properties of biocomposite films from kappa-Carrageenan (kC) filled with Nanorod-rich Zinc Oxide (ZnO-N) | Advance Pharmaceutical Journal

Research Articles

2018  |  Vol: 3(2)  |  Issue: 2(March-April) |
Antimicrobial properties of biocomposite films from kappa-Carrageenan (kC) filled with Nanorod-rich Zinc Oxide (ZnO-N)

Flyndon Mark S. Dagalea1*, Karina Milagros R. Cui-Lim, PhD1,2

1Department of Physical Sciences, College of Science,

University of Eastern Philippines, University Town, Northern Samar, Philippines 6400

2University Research and Development Services,

University of Eastern Philippines, University Town, Northern Samar, Philippines 6400

*Address for Corresponding author

Karina Milagros R. Cui-Lim,

University Research and Development Services,

University of Eastern Philippines, University Town, Northern Samar, Philippines 6400



Objective: A natural polymer, carrageenan is a product derived from the extract of seaweeds. With its bioavailability at low cost and biodegradability, carrageenan has been gaining vast applications and researches this past year. On the other hand, nanoparticles have indulged the world of science with new techniques and approaches. Materials and methods: Nanorod-rich zinc oxide has been used against E. coli and S. aureus in different researches with results in the decrease of bacterial population. In this approach, kC bionanocomposite films was filled with ZnO-N and used against four different bacteria: Escherichia coli, Staphylococcus aureus, Enterobacter aerogenes, and Pseudomonas aeruginosa. Bacterial effects of the film were determined using the zone of inhibition. Results and conclusion: Results showed that, the biocomposite kC/ZnO-N film exhibited a good antimicrobial property to the bacteria sample except P. aeruginosa, a multi-drug resistant bacteria.

Keywords: Nanorod-rich Zinc Oxide (ZnO-N), biocomposite films, kappa-carrageenan (kC), antimicrobial property


Seaweeds produce a carbohydrate form known as carrageenan. A natural polymer like polysaccharides, as such, it has been receiving great deal of attention by many scientists, because of its biodegradability and availability at low cost. The innate properties and structure of carrageenan may be used for non-food applications.

In this time of technology enhanced matrix, nanoparticles have been greatly used in advancement of Science. A breakthrough in its ability to enhance polymer properties. Also, supplies a specifically usable platform and establishing enhanced properties with general wide-ranging applications specifically for pharmaceutical and medicine.

Recent studies have been conducted on starch filled with metal nanoparticles. Results showed that nanoparticles enhanced the starch physicochemical properties and including its antimicrobial properties. In addition, nanoparticles of any kind are used today. Zinc oxide and polyvinyl chloride are some great examples of nanoparticle. With this, nanoparticles have greatly affected the lives of human. From the permeability of the sample to its enhanced and flexible outcome.

The wide range of applications is possible as ZnO has key advantages. It is bio-safe, biocompatible and can be used for biomedical applications without coating. With these unique characteristics, ZnO could be one of the most important nanomaterials in future research and applications (Kathirvelu et al., 2008).

The antibacterial activity increase with increase nanoparticle concentration and increases with decreasing particle size. Particle concentration is observed to be more important than particle size. Another cause of bacetria inhibition, which is the electrostatic force interaction between ZnONps and cell surface (Zhang  et al., 2008). The interaction will create opposing charges between the bacteria and nanoparticles that will generate an electrostatic force. This electrostatic force will strongly bind the bacteria and ZnO nanoparticles together and consequently cause cell membrane damage (Rahman et al., 2013).

The dominant mechanisms of such antibacterial behavior are found to be either or both of chemical interactions between hydrogen peroxide and membrane proteins, and the chemical interactions between other unknown chemical species generated due to the presence of ZnONps with the lipid bilayers (Zhang et al., 2009).

The surface of Zinc oxide nanoparticles reacts with water to produce reactive oxygen species that destroy the bacteria cell membranes. And, if the nanoparticles are made small enough, the bacteria will actually internalize the nanoparticles, resulting in even higher killing efficiency as the cells are attacked from the inside too (Anita and Ramachandran, 2012).

Effects of sago starch film reinforced with ZnO-N on the growth of S. aureus were investigated (Nafchi et al, 2012). To continue, the inhibition zone of nano-incorporated films was significantly increased by increasing the ZnO-N contents, suggesting that sago starch film incorporated with ZnO-N can act as an active film against microorganism. Excellent antimicrobial activity of ZnO nanoparticles against S. aureus and E. coli and the corresponding mechanism of action have also been demonstrated by other researchers.

Nanorod-rich zinc oxide carries antimicrobial properties. The interaction affects the cell permeability between the ZnO-N and the bacteria, causing the ZnO-N to enter the bacterial cell and inducing the oxidative stress in the cell. Thus, the inhibition zone approved to the ZnO-N and will cause bacterial death.

This study focused on the application of biocomposite film from kappa-Carrageenan filled with nanorod-rich Zinc oxide (ZnO-N) in antimicrobial analysis of E. coli, S. aureus, Pseudomonas aeruginosa, and Enterobacter aerogenes.

Materials and methods

Preparation of Zinc Oxide from Zinc Nitrate

The preparation was done with the procedure of Rao (2015) with some modification made. Nanorod-rich Zinc oxide was prepared by using Zinc nitrate and sodium hydroxides precursors and starch as a stabilizing agent. Kappa-Carrageenan about 0.1g was dissolved in 500 mL of lukewarm distilled water. Zinc nitrate, 14.874 grams (0.1 mol), was added in the above solution, and then followed by constant stirring for 1 hour using magnetic stirrer to completely dissolve the zinc nitrate. After complete dissolution of zinc nitrate, 0.2 M of NaOH solution was added drop by drop under constant stirring. The reaction was allowed to proceed for 2 hours. After the completion of reaction, the solution was kept overnight and the supernatant solution was kept overnight and the supernatant solution was discarded carefully. Rest of the solution was centrifuged at 10,000 g for 10 min and the supernatant was discarded. Thus, the nanoparticles were obtained and washed thrice using distilled water. Washing was carried out to remove the by-products and the excessive starch bound with the nanoparticles. After washing, the nanoparticles were dried at 800C overnight.

Preparation of Biocomposite Films

The preparation was done using A.M. Nafchi et al. (2012), with some modification made. Five grams of (5g) ZnO-N was dispersed in 95mL water (0.92% ZnO-N solution), stir for 1 hour, and then sonicated in an ultrasonic bath (if not available, use the magnetic stirrer as substitute) for 30 minutes. The solution will be used to prepare the aqueous dispersion with 2 g addition of kappa-carrageenan. A mixture of sorbitol and glycerol (3:2) was added as plasticizer. The biocomposite solution was heated to  and held for 45 min to allow gelatinization. Upon completion of starch gelatinization, the solution was cooled to room temperature. A portion of the solution was dispersed to a petri dish. Films were dried under controlled conditions in a humidity chamber. Control films were prepared similarly and stored at  and  relative humidity (RH) until experimentation.

The Antimicrobial Properties of kappa-Carrageenan filled with Nanorod-rich Zinc Oxide

Antimicrobial analysis was carried out using the procedure used by Ariap (2017) but some modifications were made. All the equipment was placed in an autoclave for sterilization. The Kirby Bauer antimicrobial test was used to determine the antimicrobial activity of the biocomposite films against E. coli, S. aureus, Pseudomonas aeruginosa, and Enterobacter aerogenes. Each of the subculture pure isolates of the bacteria were aseptically harvested into the surface of the cultured plates by using sterile cotton swab. A filter paper for the control was soaked with the solution of Chloramphenicol (1:10). The films and the soaked control was aseptically and carefully impregnated into the surface of nutrient agar using a sterile pick up forceps. The disc was placed with a distance from each other. The inoculated plates were incubated at 37  for 18-24 hours. After the inoculation, the plates were inspected for the presence of any clear zone of the inhibition around the sample discs.

Results and discussion

Once the ZnO kills/captures the cell membrane, the ZnONps presumably remain tightly adsorbed on the surface of the dead bacteria preventing further bacterial action. However, ZnO nanoparticles continue to release peroxides into the medium even after the surface of the dead bacteria are completely covered by ZnO nanoparticles, thereby showing high bactericidal efficacy (Padmavathy and Vijayaraghavan, 2008).

Antimicrobial analysis was done measuring the zone of inhibition created by the discs (positive, negative, and sample). Following the standard protocol, results were collected after 24 hours of incubations of the dishes.

Escherichia coli

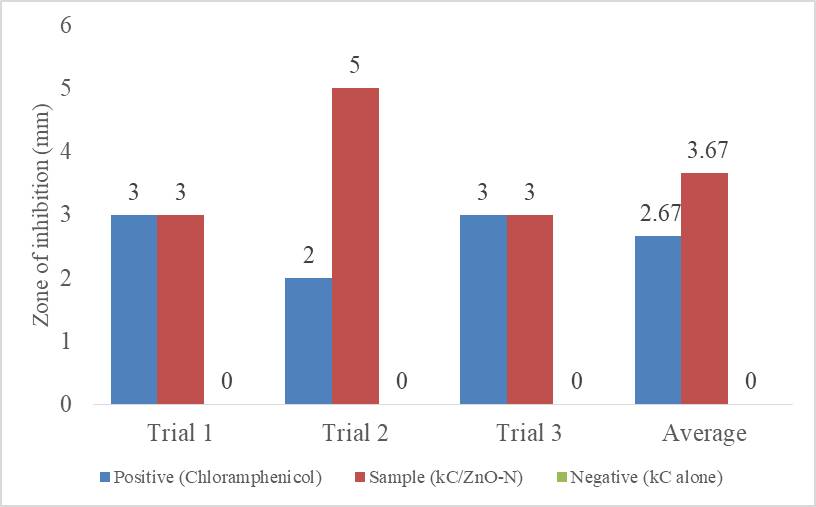

Figure 1. Comparative Chart on the Zone of Inhibition for Escherichia coli


In addition to the claim of Nafchi (2012), figure 1 shows that sample film has greater inhibitory effect than the other two. Thus, the incorporation of ZnO-N truly had a great effect in the changes of the properties of the kC. Using the t-test, results showed that there was no significant difference between the two. Thus, whether you use the chloramphenicol or the kC/ZnO-N films, results will be the same. But kC/ZnO-N films as biocomposite material will be a vital use to humans. With less chemicals intact, this film will be safer.

Enterobacter aerogenes

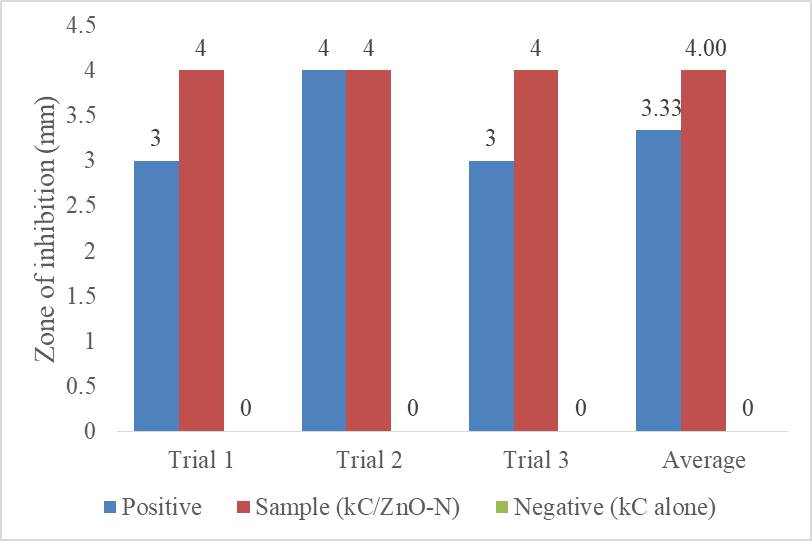

Figure 2. Comparative Chart on the Zone of Inhibition for Enterobacter aerogenes


Figure 2 shows that sample film has greater inhibitory effect in Enterobacter aerogenes than the other two. Thus, the added nanorod-rich zinc oxide truly affected the properties of the kappa-Carrageenan. Using the t-test, results showed that there was no significant difference between the two.

Pseudomonas aeruginosa

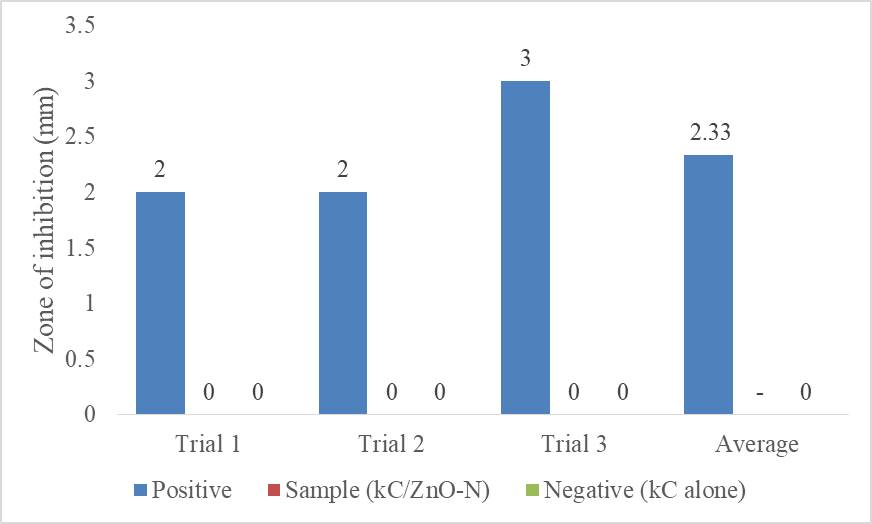

Figure 3. Comparative Chart on the Zone of Inhibition for Pseudomonas aeruginosa


Figure 3 shows that sample film has no inhibitory effect in Pseudomonas aeruginosa. Thus the results showed that ZnO-N at low concentrations has no inhibitory effect in P. aeruginosa also cited by Paul and Bam (2014). The reason was perhaps the multi-drug resistance that was developed by the bacteria. But studies showed that ZnO applied in higher concentration will result to antimicrobial property with different bacteria. ZnO produced during the entrapment between the cell membrane a reactive oxygen species that kills and coat the bacterial cell membrane. Thus, antimicrobial property of ZnO depends on its dosage.

Staphylococcus aureus

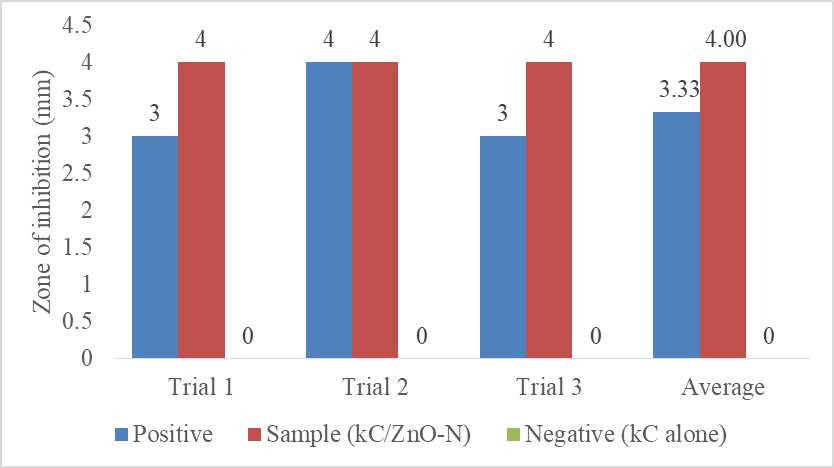

Figure 4. Comparative Chart on the Zone of inhibition for S. aureus


Cited by Rajendran, et al., (2010), nanoparticle and bulk sized ZnO-N has an excellent antimicrobial activity against S. aureus. In this figure, the inhibitory effect of the kC/ZnO-N shows great result than the other two. ZnO produced during the entrapment between the cell membrane a reactive oxygen species that kills the bacterial cell membrane and wraps it when the cell dies to prevent the flowing of the liquid inside.

Comparative analysis between the kC/ZnO-N films and kC films

In this area, results between the untreated and treated films will be compared.

Table 1. Comparative Data of the Sample films


kC films

kC/ZnO-N films

E. coli

No zone of inhibition

3.67 mm, zone of nhibition

Enterobacter aerogenes

No zone of inhibition

4.00 mm, zone of nhibition

Pseudomonas aeruginosa

No zone of inhibition

No zone of inhibition

Staphylococcus aureus

No zone of inhibition

4.00 mm, zone of nhibition

The data revealed that ZnO-N has great effect after its incorporation. The metal oxide enhanced the properties tested in the untreated film. The treated film has greater antimicrobial property than the untreated film except for P. aeruginosa. This bacterium is a multi-drug resistant. But, with higher concentration of ZnO, this bacterium could be killed (Paul and Ban, 2014).

With this, the kC/ZnO-N film exhibited unique properties that can be used in the pharmaceutical and packaging industries. In this starting point, this film could replace the existing medicine capsules for better drug protection and resistance to bacterial contamination.


The biocomposite films from kC filled with ZnO-N exhibited good antimicrobial property with the three bacteria except Pseudomonas aeruginosa. P. aeruginosa, is a multi-drug resistant bacteria and at lower concentration of ZnO is hard to kill. Biocomposite film from kC/ZnO-N has more chances of being substituted in the market as the new drug capsule and as packaging plastic. With its unique and enhanced property kC/ZnO-N developed a good antimicrobial property, efficient than the kC film.

Conflicts of interest: Nil


Anita S, Ramachandran T. 2012. Preparation, Characterization and Functional Analysis of Zinc Oxide Nanoparticles Coated Single Jersey Cotton Fabric. Textile Science and Engineering, 2:4.

Ariap, Nashyl AM, Julita AG. 2017. Antimicrobial Potential of Ligustrum spp. (Polipog) Root Extract. Unpublished Thesis, College of Science, University of Eastern Philippines.

Bauer AW, Kirby MM, Sherris JC, Turck M. 1996. Antibiotic Susceptibility Testing by a Standardized Single Disk Method. The American Journal of Clinical Pathology, 45:4.

Kathirvelu S, D’Souza L, Bhaarathi D. 2009. UV protection finishing of textiles using ZnO nanoparticles. Indian Journal of Fibre and textile Research, 34: 267-273.

Nafchi AM, Alias AK, Mahmud S, Robal M. 2012. Antimicrobial, rheological, and physicochemical properties of sago starch films filled with nanord-rich zinc oxide. Journal of Food Engineering, 113:511-519.

Padmavathy N, Vijayaraghavan R. 2008. Enhanced bioactivity of ZnO nanoparticles- an antimicrobial study. Science and Technology of Advanced Materials, 9:1-7.

Paul S, Ban DK. 2014. Synthesis, Characterization and the Application of ZnO Nanoparticles in Biotechnology. International Journal of Advance in Chemical Engineering, 1:1.

Rahman M. Aizuddin A, Mahmud S, Alias N, Abdul FM. 2013. Effect of Nanorod Zinc Oxide on Electrical and Optical Properties of Starch-based Polymer. Nanocomposites, Journal of Physical Science, 24(1):17-28.

Rajendran R, Balakumar C, Mohammed A, Hasabo A, Jayakumar S, Videki K, Rajesh EM. 2010. Use of zinc oxide nano particles for production of antimicrobial textiles. International Journal of Engineering, Science and Technology, 2 (1):202-208.

Rao NS, Rao MVB. 2015. Structural and oprtical investigation of ZnO Nanoparticles synthesized from ZnCl and Zinc nitrste. American Journal of Material Science. 5(3): 66-68.

Zhang L, Jiang Y, Ding Y, Povey M, York D. 2008. Investigation into antibacterial behavior of suspension of ZnO nanoparticles (ZnO nanofluids). Journal of Nanoparticle Research, 9:479-489.

Zhang L, Jiang Y, Daskalakis N, Jenken L, Povey M, O’Niel AJ, York DW. 2009. Mechanistic investigation into antibacterial behavior of suspension of ZnO nanoparticles against E. coli. Journal of Nanoparticle Research, 12(5):1625-1636.
